Single shaft crusher

TPD type single-shaft crusher I, main structure: consists of hopper, geared motor, single-axis crushing chamber, main shaft, cutter head, screening mechanism, frame and other components. II. Main use: The single-shaft crusher is a crushing equipment used for tires and other wastes (furniture, TV casing, etc.) to facilitate subsequent processing of materials. III. Working principle: 1. The transmission system drives the cutter disc rotation in the tire crushing equipment, and the tire block and other non-metal waste that removes the hub steel ring and meets the specifications of the equipment are sent into the hopper to the crushing chamber, and the cutter head is Cutting and tearing the material to break, less than or equal...

Single shaft crusher

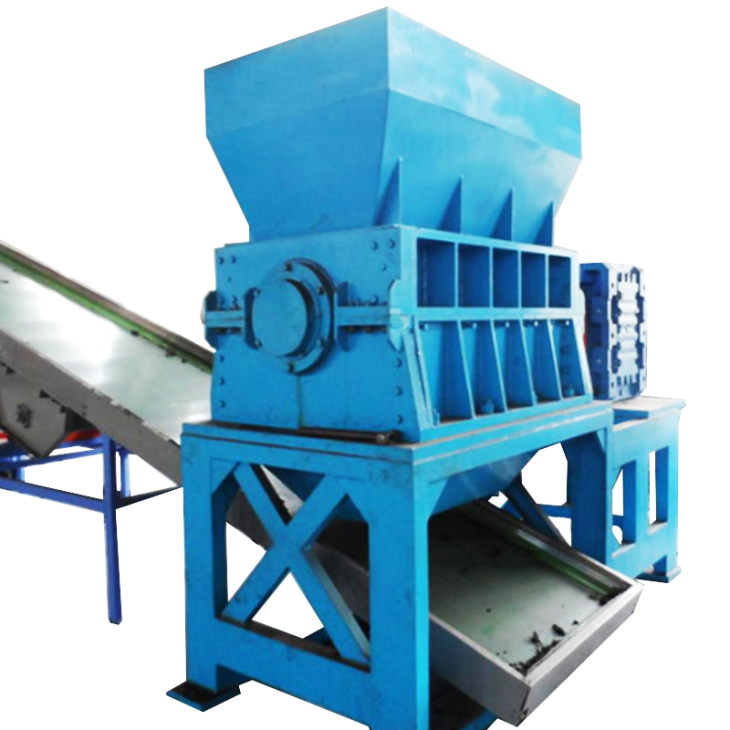

TPD type single shaft crusher

I. Main structure: It consists of hopper, gear motor, single-axis crushing chamber, main shaft, cutter head, screening mechanism and frame.

II. Main use: The single-shaft crusher is a crushing equipment used for tires and other wastes (furniture, TV casing, etc.) to facilitate subsequent processing of materials.

III. Working principle: 1. The transmission system drives the cutter disc rotation in the tire crushing equipment , and the tire block and other non-metal waste that removes the hub steel ring and meets the specifications of the equipment are sent into the hopper to the crushing chamber, and the cutter head is The material is crushed by means of shearing and tearing, and the material less than or equal to the mesh leaks out from the mesh sieve, and the material cutterhead larger than the mesh hole is brought back to the crushing chamber for cyclic crushing.

IV, the structural characteristics of the equipment are

1 Using the toothed knife roll shearing method, the knife and the spindle are stressed and the energy consumption is reduced.

2 It adopts cycloidal pinwheel reducer or hardened gear reducer, which has large bearing capacity, high efficiency, low noise and long service life.

3The wear-resistant alloy knife can be used for repeated sharpening to extend the service life of the tool.

4 Tool repair, disassembly, grinding, easy installation and long maintenance period.

V, main technical parameters
