TQCL1250 tire wheel hub cutting wire drawing machine I, cutting wire drawing The main structure consists of frame, motor, tire baffle, hook, cutting knife, trolley, drawing cylinder, pressure cylinder, cutting cylinder, lifting mechanism hydraulic system and other components. First use the tire slitting machine to cut the used tires, and then use the bead to cut the wire drawing machine to pull the wire and cut at room temperature. II. Main use: The bead cutting wire drawing machine is a device for cutting and pulling out two thick steel wires in the tire hub at normal temperature, and its main purpose is to prolong the service life of the subsequent crushing and pulverizing equipment tools. III. Working principle: Both drawing and cutting are performed by hydraulic system workers....

Cutting wire drawing machine

TQCL1250 tire wheel hub cutting wire drawing machine

I, cutting the main structure of drawing

It consists of racks, motors, tire baffles, hooks, cutting knives, trolleys, drawing cylinders, pressure cylinders, cutting cylinders, lifting mechanism hydraulic systems and other components. First use the tire slitting machine to cut the used tires, and then use the bead to cut the wire drawing machine to pull the wire and cut at room temperature.

II. Main use: The bead cutting wire drawing machine is a device for cutting and pulling out two thick steel wires in the tire hub at normal temperature, and its main purpose is to prolong the service life of the subsequent crushing and pulverizing equipment tools.

III. Working principle: Both drawing and cutting are operated by hydraulic system and piston rod reciprocating motion. The cutting cylinder works to cut the thick steel wire of the wheel hub. The drawing rod of the drawing oil cylinder drives the hook on the trolley to pull out the steel wire in the tire lip. After the steel wire is pulled out, the drawing cylinder is reset and recovered. During the working process, the V-shaped pressing block on the pressure cylinder Press the wire that has just been pulled out on the hook at the set position to pull it out.

IV, equipment structure characteristics:

1 The hydraulic station, oil cylinder, electric control cabinet and other components are all fixed on the frame. The overall structure of the equipment is simple, the appearance is beautiful, and the transportation and installation are convenient.

2 Not only makes the equipment work low noise, but also the drawing cylinder still draws at the original speed when the cylinder is working, which improves the working efficiency and the service life of the hydraulic parts.

3 The use of no-load rapid extension, load slow cutting, drawing hydraulic working mode, significantly improve production efficiency.

4 Adopt lifting mechanism to reduce the labor intensity.

V, TQCL tire wheel hub cutting wire drawing machine main technical parameters

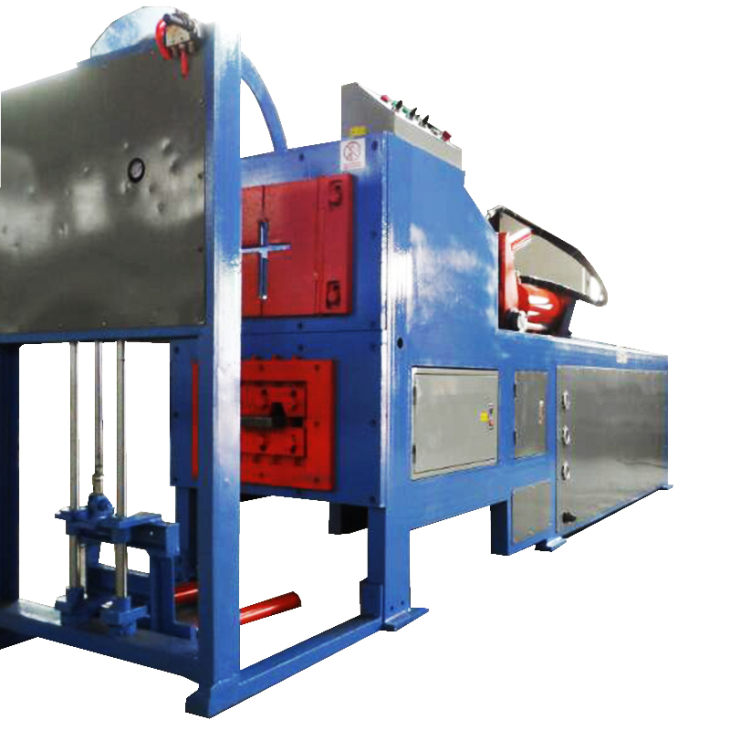

VI, TQCL type tire wheel hub cutting wire drawing machine appearance (the machine has different appearances)
