Main structure：It is consisted of the machine frame, main shaft, bearing housing, fixed powder-grinding main body, rotating powder-grinding main body, feed device, motor, power system, cooling system, & etc.

Main application：This machine can grind non-metal material of ≤15mm to powder of 20-80 mesh at ambient temperature.

Working principle：Non-mental granules are being sent into grinding chamber, and through the interaction betweem the fixed and rotating powder-grinding bodies, will be grinded to powder of 20-80 mesh.

Feature：

①Compact appearance, can be transported integrally, and easy for installation.

②Knives are made of special alloy,which can be used for a long time after maintenance of low cost and convenient.

③Large capacity and low power-consumption.

④The size of powder can be adjused freely.

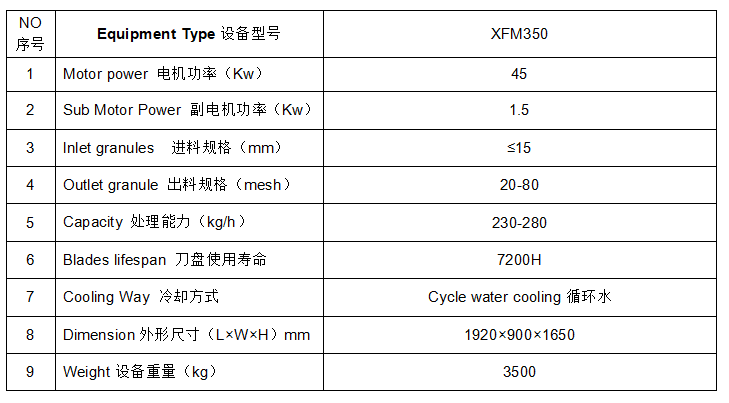

XFM  Main Technical Parameter
